Backup power for music servers and DAC's

jdandy

jdandy

New member
Joined
Apr 28, 2015
Messages
3,483
Location
North Central Florida

CyberPower manufactures a variety of uninterruptible power supply units. Several of their UPS deliver clean sinewave output and come in a component style configuration that makes them convenient for audio rack applications. I recently discovered the CyberPower PR750LCDRTXL2U model, a 750VA, 675W UPS that I find quite interesting. It is 3.5" high, 17" wide, and 15.75 inches deep. In addition to the battery backup, it provides automatic voltage regulation and surge protection. The batteries are user replaceable when that time comes. They are more expensive than typical APC or TrippLite UPS units but appear to be more substantial in features, build quality, and form factor.

In my living room system I currently use an APC UPS-650 but its enclosure does not lend itself to being installed in a component rack so it sits on the floor next to the audio rack. The APC UPS does not produce pure sinewave output, nor does it provide voltage regulation. I use it to backup the power for my Auender N100H music server, Schiit Audio Yggdrasil DAC, and the Simaudio MOON 260D transport The server is the only component that truly requires backup in order to maintain its operating system without requiring a hard boot after a power interruption, but I keep the DAC and transport powered to keep them at normal operating temperature.

At this time I am giving serious consideration to ordering the CyberPower PR750LCDRTXL2U. It would look good in my audio rack while providing clean sinewave power and voltage regulation to the connected components. I thought perhaps there may be others who might find this UPS of interest.

Is this something that would be used in lieu of, say, a PS Audio P10 or P5? Like a cheaper alternative?

nicoff said:
Is this something that would be used in lieu of, say, a PS Audio P10 or P5? Like a cheaper alternative?
Click to expand...

nicoff.......No. The CyberPower UPS is an altrnative AC power source during loss of utility power. The fact that the model I mentioned also provides voltage regulation and surge protection does not mean it provides ultra clean AC that has harmonic distortion stripped from the sine wave. My current power connection for my APC 650 UPS is my PS Audio P10 AC power regenerator. In that way I am feeding clean power to the UPS, although the APC 650 UPS does not produce pure sine wave output when on battery power, rather it produces simulated sine wave power which is a stepped type sine wave. This is not the perfect power that comes from the P10, but as a backup power source to maintain power to the Aurender N100H music server for short intervals it is satisfactory. In actuality the American Power Conversion 650 UPS works fine for my primary purpose of keeping the operating system in the N100H music server online, but the CyberPower UPS is considerably more sophisticated in many ways and it would allow it to be installed in my audio rack. The CyberPower PR750LCDRTXL2U UPS is more of a want than a need.

I don't know if this is the direct equivalent of the CyberPower but I've been using the APC Smart UPS range for over 8-10 years now both at home and in my offices. I have my audio gear running off an APC 2KVA SURT model which is now discontinued but was at the time of introduction used for providing backup for servers and hospital equipment.

https://www.apc.com/shop/us/en/cate...network-and-server/smart-ups-on-line/N-pgx5ae

I do remember the APC significantly improving the sound back then but it's been many years and the sound is now "set" in my ears. Back then the features of regenerating a sine wave by double conversion topology and the fine adjustment of the output frequency was a big deal. APC did go down briefly but has now come back after being taken over by Schneider Electric.

Regards.

Nikhil.......The new APC backups look very nice. I am surprised how similar the new APC Smart-UPS SRT 1000 appearance is to the CyberPower UPS units I have been researching. The pricing on APC has skyrocketed.





I have seen several audio systems using the APC AV Black 1kVA S Type power conditioner and battery backup unit that provides pure sine wave power, voltage regulation, EMI/RFI filtering, and surge protection. It seems to be popular with audio enthusiasts. Its price is similar to the APC SRT model UPS units, typically near $1K.





This morning I ordered the American Power Conversion APC SMC1000-2U uninterruptible power supply for my living room system. I bought it from B&H Photo for $385.00 with free 3-day shipping. I should have it this Friday. B&H Photo beat NewEgg and Amazon prices by $40.00.

I am looking forward to installing this UPS. It will look attractive sitting on a shelf in my Salamander rack, something my present APC Smart UPS 650 isn't able to do. In addition, this UPS delivers pure sine wave AC when on battery. It is rated at 1000VA/600 watts and should easily support my Aurender N100H, Sonos ZP9 zone player, and a NetGear WiFi Extender for over an hour on battery backup. I decided last night to power the Yggdrasil DAC and the Simaudio MOON 260D transport directly from the PS Audio P10. I moved their power cables last night to the P10.

I will power the new UPS from an always active receptacle on the P10 AC regenerator. The APC SMC1000-2U features automatic voltage regulation but since the P10 also regulates its output voltage to exactly 120 volts the APC UPS will not have to work hard adjusting AC voltage. The APC UPS also provides EMI/RFI filtering and surge protection, both features also being taken care of in advance by the P10. This should certainly mean the power to the Aurender N100H will be squeaky clean and stable on both utility power and battery backup power. I am excited to have the new UPS in my living room audio rack.

Congratulations Dan...looks like a fine unit at a very attractive price. I’m might order one myself. I lost power twice in the last few days. Lucky my Aurender N100H came back up without any issues.

Audiophilehi said:
Congratulations Dan...looks like a fine unit at a very attractive price. I’m might order one myself. I lost power twice in the last few days. Lucky my Aurender N100H came back up without any issues.
Click to expand...

Paul.......You're right, an extremely attractive price that represents a lot of peace of mind for sensitive digital music servers. Cheap insurance in my opinion.

jdandy said:

This morning I ordered the American Power Conversion APC SMC1000-2U uninterruptible power supply for my living room system. I bought it from B&H Photo for $385.00 with free 3-day shipping. I should have it this Friday. B&H Photo beat NewEgg and Amazon prices by $40.00..
Click to expand...

Dan, that is a really good price.
Like you said, really good practical insurance for your gear.

You may also want to check with your vendor on the battery pack supplied.
Check if the APC SMC 1000 can use a 9AH battery instead of the 7AH battery they usually come with.
The 9AH has a better discharge characteristic apart from the longer battery backup.

Nikhil said:
Dan, that is a really good price.
Like you said, really good practical insurance for your gear.

You may also want to check with your vendor on the battery pack supplied.
Check if the APC SMC 1000 can use a 9AH battery instead of the 7AH battery they usually come with.
The 9AH has a better discharge characteristic apart from the longer battery backup.
Click to expand...

Nikhil.......I will check into the higher capacity battery. I appreciate the advice. If the APC SMC1000 can use a 9AH battery, I will most likely wait until the first battery replacement becomes necessary, then make the upgrade. As it stands I will have less than a 50 watt load on the UPS which should give me in excess of 90 minutes of backup run time. That is far more than I will require because I shut down the music servers manually if the utility power is not restored within 15 or 20 nimutes. The backup power serves my purpose by allowing the music server to remain energized during short term power interruptions. Where I live power interruptions are quite often momentary, less than 5 or 10 seconds. That is what I am most concerned with while protecting my music servers.

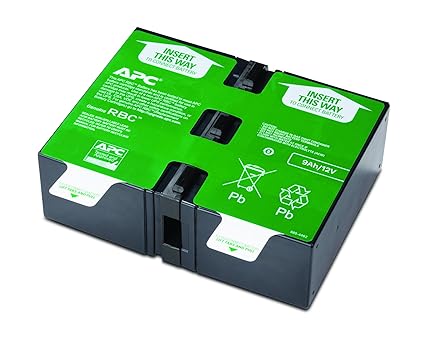

Nikhil.......Good news. I contacted the seller about the batteries in the APC SMC1000-2U UPS. The batteries are 9Ah rated, good for 3 to 5 years.

Thanks again or the tip.



Dan, that's great!

Looks like APC has standardized the 9AH batteries.
With the way you plan to use them they should last a long time.

Regards.

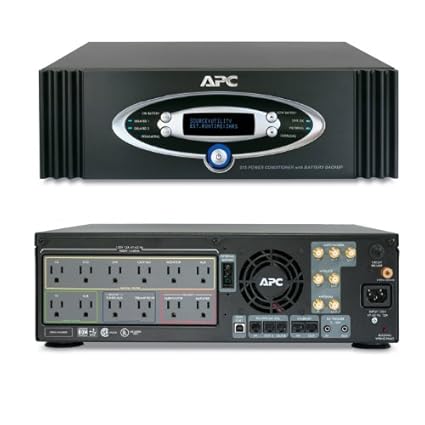

Not sure about these new models but on the APC S20BLK power conditioner that I have, when the unit kicks into battery back up an alarm mode is activated. It,s a timed interval beeping. Haven't looked into the ability to disabling it but it is not acceptable for continued musical enjoyment. But it does alert you to a power issue and gives you plenty of time to shut things down.
As Nikhil stated, I believe these units have primarily been designed for computer/server usage and not specifically designed for audio purposes.
However, for the most part they do a good job for us, just with a few quirks.

jadedavid said:
Not sure about these new models but on the APC S20BLK power conditioner that I have, when the unit kicks into battery back up an alarm mode is activated. It,s a timed interval beeping. Haven't looked into the ability to disabling it ...
Click to expand...

The units can be programmed to stay silent. That's how I have mine set.
The default setting is set to beep.

jadedavid said:
Not sure about these new models but on the APC S20BLK power conditioner that I have, when the unit kicks into battery back up an alarm mode is activated. It,s a timed interval beeping. Haven't looked into the ability to disabling it but it is not acceptable for continued musical enjoyment.
Click to expand...


Dave.......The APC SMC1000-2U UPS has a Mute feature that allows the alarm beep to be silenced. When pressed, the lower left button mutes the alarm beep and the speaker symbol in the display changes to show a hash mark across the speaker.



CPP said:
Dan I have that APC SMT1000C in the tower, its been a few years and going strong. I use it in my office, computer,NAS, monitor etc..
Click to expand...

Chris.......Through the years I have gotten excellent service from my APC UPS units. I presently use a total of seven APC 650, 750 and 1000 Smart-UPS. I back my office computer and monitor, three satellite receivers and 4K TV's, my Aurender N100H in the living room, my security system cameras and hard drive, and a PC and PowerMac computer in my studio control room. They have all provided me excellent service through many years. I put fresh batteries in them every three years to keep their performance reliable. It is my confidence in APC's long term reliability that was the determining factor to purchase the APC SMC1000-2U UPS instead of the CyberPower PR750LCDRTXL2U.

The new APC SMC1000-2U UPS will replace a Smart-UPS 650 in the living room sound system. It is the first pure sine wave UPS I have owned.

Thanks to both for the info on silencing the beep. Maybe if I were to have actually read the 87 page manual I would have noticed that. Duh.
